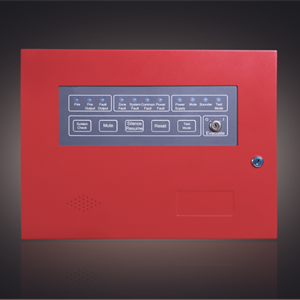

VG-6833 Mini Conventional Panel

VG-6833, considered as a mini version of VG-6831 series, is developed as the need of small and economic project, such as warehouse, small store, villa, etc. It is capable to connect with 30 conventional devices of detector and call point. One sounder circuit is available for warning devices of conventional sounder or alarm bell. There are two fire outputs in accordance with two alarm status, as only one detector generates Initial Fire and then two or more detectors activate Fire Alarm.

* Mini-size of single zone conventional panel
* Single conventional zone of Max. 30 filed devices
* One sounder circuit of conventional sounder or alarm bell
* Three passive contacts of fire and fault outputs
* Two fire outputs logically respond to different alarm stages
* One Fault output, and two fire outputs of two alarm levels
* LED indicators and functional buttons available
* Ideal design for small-size of projects
* Power Supply: AC220V/50HZ
* Operating Voltage: DC20V~24V
* Standby Current: 100mA
* Action Current: 1A
* Passive Output: DC24V/1A
* Dimension: 320*240*67mm
* Installation: Wall-mount
