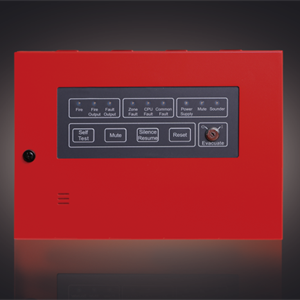

VG-6832 Conventional Fire Alarm Panel

VG-6832 is a convenient and cost efficient control unit with one detection zone only. Each zone supports 25 conventional detectors. This system is designed to achieve high and reliable performance with small size and integrated functions. The panel is developed with one sounder circuit, one fault output and two fire outputs, which could meet the needs of small business users or residential houses. What's more, the VG-6832 is specially designed under DC48V power input, which is available in telecom sub-station or data center.

* Small-size of one zone conventional panel
* 1 detection zone and 1 sounder circuit
* 3 passive outputs of 1 fault output and 2 fire outputs
* Two fire outputs respond to fire alarm in different steps
* LED indicators and control buttons available
* Special designed on main power of DC48V
* Talented design for telecom sub-station or data centerTechnical data
* Power Supply: DC48V
* Operating Voltage: DC20V~28V
* Standby Current: 100mA
* Action Current: 1A
* Passive Output: DC24V/1A
* Dimension: 280*200*60mm
* Installation: Wall-mount
