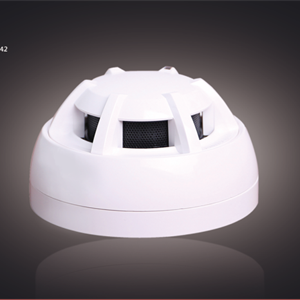

VG-6623 Conventional Optical Smoke Detector

VG-6623, a conventional smoke detector, is developed based on the principle of light scattering. The unique optical chamber is engineered to sense smoke by a wide range of combustion sources, as well as slow burning or smoldering fire. The detector is programmed with intelligent drift compensation to the variation of environment, in terms of temperature, humidity, dust and static. VG-6623 is condensed with unique and talented design on sense chamber, algorithm and plug-in structure without screw. Furthermore, this detector has output available for Remote Indicator and be tested by magnetic tool. It can be used in a conventional system, through connection with control unit or module.

* 360° visible LED
* Build-in program of Drift compensation
* Intelligent algorithm and judgment
* Special chamber against interferences
* Remote Indication Output
* Magnetic test available
* Talented plug-in structure without screw
* Used in conventional line only
* LPCB approval to EN54-7 *Operating Voltage:DC9V～28V
* Standby Current:≤60μA
* Alarm Current:10mA≤I≤50mA
* Indicator: Flash as Standby, Illuminate as Alarm
* Remote Indicator Output: 10kΩ resistor required
* IP Rating: IP32
* Temperature: -10℃～+55℃
* Humidity ≤95%，non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm
* Weight: About 120g
* Base:VG-6611
