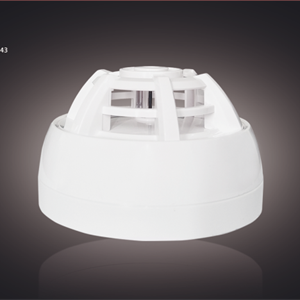

VG-6633 Conventional Dual Heat Detector
VG-6633 Heat Detector is developed based on the princple(principle) of fixed temperature and rate of rise from the heat of fire, to initiate fire alarm. It is Equipped(equipped) with high-sensitivity thermal sensor for fast responding to the variation of temerature(temperature). VG-6633 is condensed with unique and talented design on thermal sensor, algorithm and plug-in structure without screw. It has remote indication output available and capable to be tested via a magnetic tool. It is suitable for the environment without smoke but a lot of dust or the places where smoke and vapor stay, such as kitchen, parking lot, bolier(boiler) room, generator room, drying workshop, etc. It can be used in a conventional system, through connection with control unit or module.
* Thermal sensor with high sensitivity
* Classification of A2R
* Principle of Fixed Temperature and Rate of Rise
* Remote Indication Output
* Magnetic test available
* Talented plug-in structure without screw
* Used in conventional line only
* LPCB approval to EN54-5
* Standby Current:≤60μA
* Alarm Current:10mA≤I≤50mA
* Classification: A2R
* Indicator: Flash as Standby, Illuminate as Alarm
* Remote Indicator Output: 10kΩ resistor required
* IP Rating: IP32
* Temperature: -10℃～+55℃
* Humidity ≤95%，non-condensing
* Material of Enclosure: ABS
* Dimension: D-100mm, H-43mm
* Weight: About 120g
* Base:VG-6611
