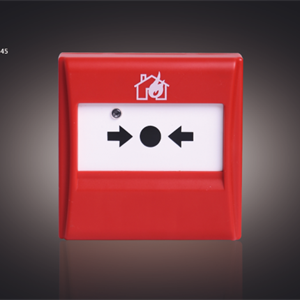

VG-6653 Conventional Manual Call Point

VG-6653 Conventional Manual Call Point is an essential device to manually generate a fire alarm in a conventional FD&A system. The call point has a non-breaking plate as initiating part, so as to bring a high repeatability and be resettable via a special key. The multi-installation ways allows it can be installed anywhere along hallway or Exit for easy access, and suitable for applications of hotel, restaurant, bank, office building, shopping mall, etc.

* Non-breaking and Resettable
* Flush-mount or Wall-mount
* Plug-in structure and easy installation
* Stylish appearance
* Used in conventional line only
* LPCB approval to EN54-11 * Operating Voltage: DC12V～28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤20mA
* Class: Type A, indoor use
* IP Rating: IP43
* Temperature: -10℃～+55℃
* Humidity: ≤95%, non-condensing
* Material of Enclosure: ABS
* Dimension: 88*88*58mm (with back box)
88*88*23mm (without back box)
* Weight: About 160g (with back box)
About 107g (without back box)
