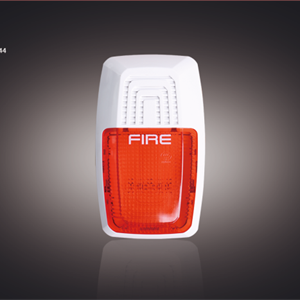

VG-6734 Conventional Sounder Strobe

VG-6734 Conventional Sounder Strobe, is connected with conventional sounder output to provide audible and visual alert of fire alarm. When the sounder output is activated, VG-6734 will generate alarm sound and warning flash, and then can be silenced by manually control on control panel. Moreover, there are 16 tones selectable via the dip-switch. This sounder could be connected with conventional sounder output only, either from control panel or interface.

* Audial and visual warning
*16 tones available
* No external power supply required
* Fast responding time and low power consumption
* Plug-in structure and easy installation
* Used in conventional sounder circuit only
* LPCB approval to EN54-3 * Operating Voltage: DC20V~28V
* Action Current:≤35mA
* Alarm Tone: 16 types
* Flashing Frequency: 1.4×(1±20％)Hz
* IP Rating: IP21C
* Temperature: -10℃～+50℃
* Humidity: ≤95%, non condensing
* Material of Enclosure: ABS
* Dimension: 152*91*49.5mm
* Weight: About 210g
