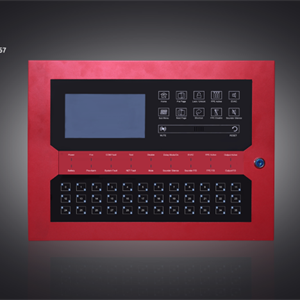

VG-6847 Digital Fire Alarm Panel
Mobile APP.
Operating as a FD&A panel, VG-6847 is developed with general functions to meet the EN54 standard and customer's need. Design based on digital protocal, the panel does not need to do a round-talk, but let the field device report to it immediately. Following this scenario, VG-6847 could receive the fire alarm with 0.1 second. Apart from detection loop, there are several outputs available, two conventional sounder circuits, one auxiliary power, two passive outputs for fire and fault, and six I/O circuits, which can be programmed as input or output on different request.
The powerful heart of VG-6847 is designed with RISC CPU based on ARM platform, which providing a high speed, reliable performance but low power consumption. In the mean while, it has a very good memory of 10,000 event logs in 10 categories, such as fire, fault, disable, mute, reset, etc. Looking at the hardware, the modulized method is applied in the design of structure. Each board contains its own CPU, so the damage on one board will not affect the others. The Panel is also strong in body because of multiple self-protection against short-circuit in loop or power line, as well as surge break, lightning strike, transient impulse, etc. In addition, the unique design enable the panel be free from Earth Fault.
VG-6847 can connect with computor through the CANBus port for programming and commission as traditional way. Another outstanding feature is to do the configuring job via Mobile APP. Moreover, the program file could be done on a PC, and then upload to the panel through USB plug-in and SD card for easy upgrading. If internet is available, VG-6847 can be fully configured, tested, updated and controled from a far distance, even from the other side of the earth. With regard to team-works, it is capable to establish a True Peer-to-Peer Network of maximum 128 panels. Among the Network, it is able to cross-view and operate the system from any panel. Furthermore, if any system paralysis happened on one panel, it is possible to transfer all the records of settings and messages to another panel networked. Utilizing CANBus protocal, the network is reliable and extandable up to 10km.
Talking about a complete digital system, VG-6847 is considered as the powerful brain to receive the messages from field devices, make the correct decision via the "Cause & Effect" program and then release the order to activate related devices and equipments.
* First FD&A panel using Acrylic front surface and buttons
* Integerated WIFI module inside for Mobile APP
* True Peer to Peer Network upto 128 panels
* 7" ToucI4:J5h-screen for graphic display and friendly control
* Max. 4 loops as Class A and Max. 8 loops as Class B
* Loop capacity of 256 mix-type devices
* 36 Zone indication LEDs of Fire, Fault and Isolate
* 10,000 event logs of 10 category
* 2 sounder circuits, 6 pro-I/O circuits and 2 passive outputs
* Modulized structure design with separate CPU on each board
* Talent design of protection against earth fault
* Remote monitor and control possible via internet
* PC Monitor Software available via CANBus connection
* Compliant with EN54-2, EN54-4 and EN54-13
* Loop Voltage: DC15-28V
* Loop Current: ≤200mA
* Short Circuit Protection: ≤400mA
* Loop Capacity: 256~2048 devices
* Sounder Output: DC22~27.5V/1A
* Passive Output: DC30V/1A
* Programmable Output: DC30V/1A
* auxiliary(Auxiliary) Power Output: DC30V/2A
* Temperature: -10℃ ～ 50℃
* Humidity: ≤95％RH（40±2℃）
* Installation: Wall-mount
* Dimensions(Dimension): 480*355*120*mm
* Batteries: Two DC12V/7Ah
* Cable: 1.5mm² or above shield cable
