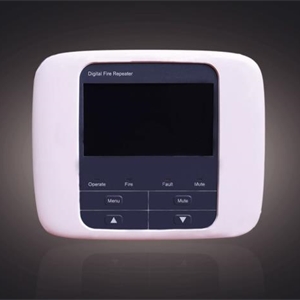

VG-6762 Digital Fire Repeater

VG-6762 Repeater Panel is developed as a mean to display full message same as on the contorl(control) unit, such device address, localtion and other usefull info, from a remote location. Using as a mini station, it is normally installed at the reception or supervised location of each floor. A 4.3 inches color LCD touch-screen is Equipped(equipped) on the mini and sttractive(attractive) structure. It occupy only one address in the loop, but able to view message from cross-loop. USB port for updating and multi languages make VG-6762 a user-friengly(user-friendly) sytem(system) and reliable performance.

* A means of full info display from a remote location
* Installed at reception or supervised position of each floor
* Full message displayed same as the fire alarm panel
* Mini and attractive structure design
* Equipped(Equipped) with 4.3 inches touch screen for graphic display
* Occupy one address, able to view message from cross-loop
* USB port available for easy updating
* Multi languages ensure a user-friendly system
* 24VDC power supply required, but low power consumption
* Power Supply: DC24V
* Operating Voltage: DC15V-28V
* Operating Current: ≤60mA
* Standby Current: ≤0.7mA
* Standby Power: ≤1W
* Display: 100 alarmed address
* Temperature: 0℃～45℃
* Relative Humidity: ≤95%RH（40±2℃）
* Addresse: 0# ～ 255#
* Installation: Wall-mount
* Dimension: 171*140*32mm
