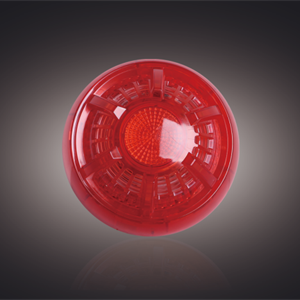

VG-6737 Digital Sounder Beacon

VG-6737 Digital Sounder Beacon, as an warning device, combined flashlight and sound, is fully compatible with V-GRET Digtial Protocal and Intelligent Protocal. Each beacon contains sixteen alert tones and four levels of volume, but occupy only one address. With a unique design, it can be directly connected in the loop and driven by loop-power, as well as external power supply. This beacon is automatically activated or restored when a fire situation is detected or removed, or manually controled on FD&A panel. VG-6737 is suitable for the applications of visual or audible warning or both required for the purpose of evacuation.

* Electronic addressing
* Sound or Beacon switchable
* Sixteen alert tones available
* Four volume settings
* Loop powered or external power supply
* Device locking facility
* Talented plug-in structure without screw
* LPCB approval to EN54-3
* Operating Voltage: DC16V～28V
* Standby Current: ≤ 0.3mA
* Action Current: ≤8.0mA
* Alarm Tone: 16 types
* Alarm Volume: 4 levels
* Visual Indication: 0.2s light on; 0.8s light off
* IP Rating: IP21C
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Dimension: D-100mm, H-43mm (without base)
* Weight: About 120g
* Base: VG-6619(VG-6619)
