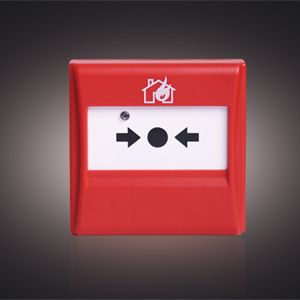

VG-6657 Digital Manual Call Point

VG-6657 Digital Manual Call Point is an essential device for manually activate a fire alarm signal, which is fully compatible with V-GRET Digital Protocal and Intelligent Protocal. The initiating part of VG-6657 is designed based on the principle of non-glass breaking which increase its repeatability and can be reset via a special key. The multi-installation ways allows it can be installed anywhere along hallway or Exit for easy access and suitable for applications of hotel, restaurant, bank, office building, shopping mall, etc.

* Electronic
* Non-breaking and Resettable
* Flush-mount or Wall-mount
* Plug-in structure and easy installation
* Stylish appearance and low power consumption
* LPCB approval to EN54-11 * Operating Voltage: DC16V ～28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤1mA
* Indicator: Red. Illuminates in alarm
* Class: Type A, indoor use
* IP Rating: IP43
* Temperature: -10℃～+55℃
* Humidity: ≤95%, non-condensing
* Material of Enclosure: ABS
* Dimension: 88*88*58mm (with back box)
88*88*23mm (without back box)
* Weight: About 160g (with back box)
About 107g (without back box)
