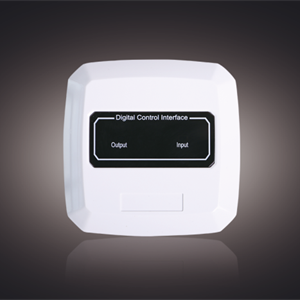

VG-6727 Control Interface

VG-6727 Digital Control Interface is designed to drive an fire fighting equipment and receive feedback, when FD&A control unit generate a fire alarm. Part of its function is same as VG-6717 Digital Monitor Interface. In the mean while, it is able to transmit action signal from FD&A panel to other fire facility, such as Fire Shutter, Sprinkler, Ventilation, AC, etc. Moreover, it is possible to report fault to FD&A control unit when there is open-circuit occurred in Input/Output/Power line. And this optional function can be disabled or enabled via programmer.

* Electronic Addressing
* Two LED indicators for Input and Output
* Passive contact as Input and Replay contact as Output
* Open-circuit check on Input/Output/Power line as option
* DC24V power supply required
* Plug-in structure design for easy installation
* LPCB approval to EN54-18
* Operating Voltage: DC16V-28V
* Standby current: ≤0.5mA
* Action current: ≤1.0mA
* Input: Passive contact with EOL resistor 4.7k * Output: Relay contact 1A/30VDC
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Installation: Wall-mount
* Dimension: 82*82*39mm (with base)
* Weight: 115.1g (with base)
* Base: VG-6618
