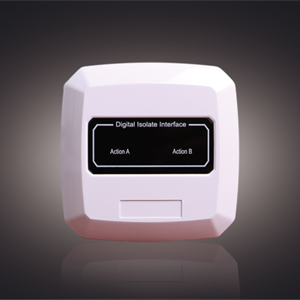

VG-6777 Isolate Interface

VG-6777 Digital Isolate Interface monitors the digital loop in regard of short-circuit occurred, and then isolate the short-circuit side in order to ensure the digital devices working properly, without potential damage. Upon removal of the short-circuit fault, the isolator will be restored automatically. This interface does not occupy the loop address, and no need of extra power. It is considered as an necessary part of a digital loop to ensure continuous data communication in faulty condition.

* Automatic recovery
* Short-circuit protection to field devices
* Protection covers up to 32 digital devices
* Dual LED indication of faulty sides
* Isolation to both sides of input and output
* Plug-in structure design for easy installation
* LPCB approval to EN54-17
* Operating Voltage: DC18V-28V
* Standby current: ≤1mA
* Isolate condition: Loop voltage ≤7.5V
* Isolate current: ≤10mA
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Installation: Wall-mount
* IP rate: 32
* Dimension: 82*82*39mm (with base)
* Weight: 127.1g (with base)
* Base: VG-6618
