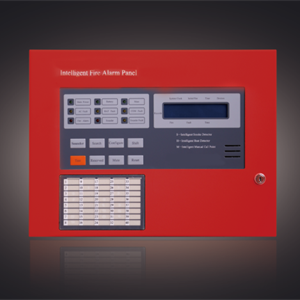

VG-6811 Intelligent Fire Alarm Panel

VG-6811 Intelligent Fire Alarm Panel is a single-loop addressable panel with capacity up to 100 intelligent devices. This panel is designed in a compact size with 1 LCD screen, 1 sounder output, 2 passive outputs and LED indicators. The build-in memory is capable for 1000 event logs. Through RS232 port, this panel is networkable with other V-GRET panel. In order for Firehouse Gateway, the panel is programed as 8 logic zones with one sounder beacon VG-6737 and one output interface VG-6727 of each. VG-6811 is considered as a economic solution for small projects such as residential house, restaurant, hotel, bank office, telecom stations, etc.

* One detection loop of intelligent devices
* One sounder circuit for conventional sounders
* Two passive outputs for Fire and Fault
* Eight logic zones with sounder and output
* Build-in memory of 1000 event logs
* Networkable via RS232 interface
* Ideal economic solution for small project
* Power Supply: AC180V-252V/50HZ
* Loop Voltage: DC15-28V
* Loop Current: 200mA
* Short-Circuit Protection: Max.400mA
* Loop Capacity: 40 or 100 devices
* Passive Output : DC30V/1A
* Sounder Circuit: DC24V/300mA
* Temperature: -10℃ ～ 50℃
* Humidity: ≤95％RH（40±2℃）
* Installation: Wall-mount
* Dimension: 320*240*68mm
