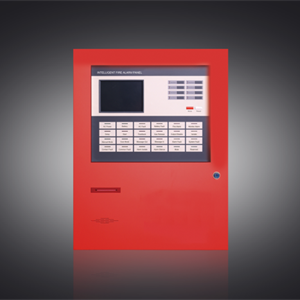

VG-6851/3 Intelligent Fire Alarm Panel

VG-6851 FD&A Panel, operating on V-GRET Intelligent Protocal, is a full size panel with a range from 1 to 4 addressable loops and up to 256 devices in each loop. This panel comes with an LCD touch screen for friendly control and graphic display, as well as LED indicators for functions. The RISC CPU inside gives the panel features of high speed, reliable performance and low power consumption.

This panel has a build-in memory of 8000 event logs. Moreover, it is able to record the curve and data of smoke/temperature, so as to set the threshold on the panel. The user could select language between Chinese and English, as well as other languages in future. VG-6851 can be easily programmed while connected with a PC or laptop. Meanwhile, the facility of USB plug-in and SD card is also available for program update. Opening to internet, the panel could be ontrolled from a remote distance and integrated with BMS.

The panel is engineered with different ports of Earthnet, CANBus, RS485, as the need of different protocal. Through CANBus, it can establish a True Peer to Peer Network of maximum 64 panels. And the message could be cross-viewed from any panel networked. Using CANBus protocol, the communication is reliable and extendable up to a distance of 10 km.

* Series from 1 to 4 loops, 256 devices each loop

* 1 sounder circuit, 6 active output(outputs), 1 auxiliary(auxiliary) power output
* Touch-screen of control and display
* Built-in RISC CPU based on ARM platform

* Threshold ajustable(adjustable) available on panel setting

* Build-in memory of 8000 event logs
* Self-protection against short, surge break, lightning strike and transient impulse
* Protoal(Protocal) ports support Earthnet, CANBus, RS485, etc.
* Remote control possible when connect with internet
* CANBus enhance the communication distance up to 10 km
* Programming on PC or USB plug-in and SD card update
* Multi-language preference
* True Peer to Peer Network

* Power Supply: AC187-242V/50HZ

* Loop Voltage: DC15-28V
* Loop Current: 200mA

* Short-Circuit Protection: Max.400mA

* Loop Capacity: 256/512/768/1024 devices

* Active Output : DC24V/1A
* Sounder Circuit: DC24V/1A

* auxiliary(Auxiliary) Power: DC24V/4A

* Network: 64 panles(panels)

* Dimension: 460*620*120mm

* Installation: Wall-mount
