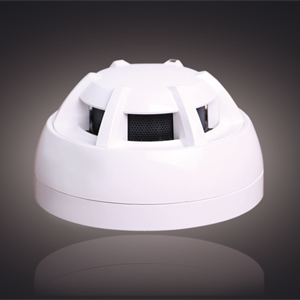

VG-6621 Intelligent Smoke Detector

VG-6621 Intelligent smoke detector is designed based on the principle of light scattering, the unique photoelectronic chamber is engineered to sense smoke by a wide range of combustion sources, as well as slow burning or smoldering fire. The detector is programmed with intelligent drift compensation to the variation of environment, in terms of temperature, humidity, dust and static. The detector is condensed with unique and talented design on sense chamber, algorithm and plug-in structure without screw. Furthermore, VG-6621 has two selectable modes of Fast Respond and Intelligent Respond, which is suitable for different applications.

* Electronic addressing
* 360° visible LED
* Reliable performance on slow burning or smoldering fire
* Tow modes of Fast respond and Intelligent respond * Special chamber against interferences
* Build-in program of Drift Compensation
* Talented plug-in structure without screw
* Operating Voltage: DC15V-28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤1.0mA
* Protection area: ≤80m²
* Installation Height: ≤12m * Transmit Distance: Max. 2000m
* Temperature: -10℃～ +55℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Dimension: D-100mm, Height-56mm (include base)
* Weight: 83.8g
* Base: VG-6611A
