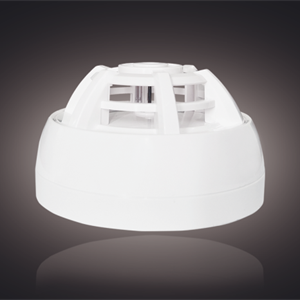

VG-6631 Intelligent Heat Detector

VG-6631 Intelligent heat detector initiates an alarm in response to both rapid rate-of-rise conditions and fixed temperature. It is Equipped(equipped) with high-sensitivity thermal sensor for fast responding to the variation of temerature(temperature). VG-6631 is condensed with unique and talented design on thermal sensor, algorithm and plug-in structure without screw. It is suitable for the environment without smoke but a lot of dust or the places where smoke and vapor stay, such as parking lot, bolier(boiler) room, generator room, drying workshop, etc.

* Electronic addressing
* 360°visible LED
* Classification of A2
* Thermal sensor with high sensitivity
* Principle of Fixed Temperature and Rate of Rise
* Talented plug-in structure without screw
* Operating Voltage: DC15V-28V
* Standby Current: ≤0.5mA
* Alarm Current: ≤1.0mA
* Classification: A2
* Protection area: ≤30m²
* Installation Height: ≤8m
* Alarm Temperature: +54℃～ +70℃
* Transmit Distance: Max. 2000m
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensin
* Dimension: D-100mm, H-56mm (include base)
* Weight: 64.4g
* Base: VG-6611A
