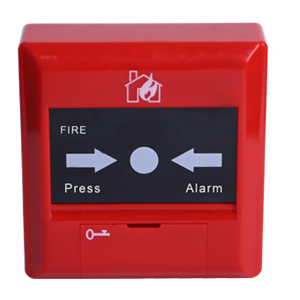

VG-6652 Intelligent Manual Call Point

VG-6652  Intelligent Manual Call Point is an essential device to manually initiate a fire alarm. This call point is designed with non glass breaking activation which increase its repeatability and it can be reset via a special key. The call point can be addressed via a programmer so as to communicate with the V-GRET intelligent panel. The multi-installation ways allows it can be installed anywhere along hallway or Exit for easy access.

* Electronic * Resettable via special key
* Flush or surface mount installation
* Simple connection with removable terminal block
* Stylish appearance and low power consumption
* Operating Voltage: DC15V-28V
* Standby Current: ≤0.4mA
* Action Current: ≤0.9mA
* Contact capacity: 30VDC/100mA,br/> * Transmit Distance: Max. 2000m
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH, non-condensing
* Dimension: 88*90*32mm
