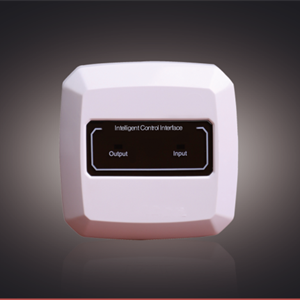

VG-6721 Intelligent Control Interface

VG-6721 Intelligent Control Interface is designed to activate an fire fighting equipment and receive feedback during fire alarm condition. Part of its function is same as VG-6711 Intelligent Monitor Interface. In the mean while, it is able to transmit action signal from FD&A panel to other fire facility. Moreover, it is possible to report fault to FD&A panel when an open-circuit is detected in Input/Output/Power line. And this optional function can be switched on or off as needed.

* Electronic Addressing
* Two LED indicators for Input and Output
* Passive contact as Input and Active contact as Output
* Optional function to check with Input/Output/Power line
* DC24V power supply required,br/> * Plug-in structure design for easy installation
* Operating Voltage: DC15V-28V
* Standby current: ≤0.5mA
* Action current: ≤0.6mA
* Input: Passive with EOL resistor 4.7k
* Output: Active 1A/30V or Passive
* Transmit Distance: Max. 2000m
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Installation: Wall-mount
* Dimension: 82*82*39mm (with base)
* Weight: 115.1g (with base)
* Base: VG-6613
