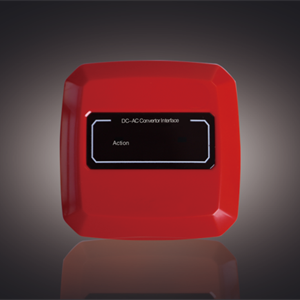

VG-6772 DC-AC Convertor Interface
VG-6772 Converter Interface is used to convert DC24V input to AC250V or DC30V output, as well as application of activation current more than1A or impedance less than 20Ω. As a conventional unit, it does not occupy the address of intelligent loop. Moreover, it is designed with a red case so as to warn the danger of 250VAC output. Normally, VG-6772 Convertor is applied as interface between output of Control Module/Control Panel and input of integrated equipment.
Features
* Convertor between DC24V input and AC220V output* Convertor between DC24V input and DC30V above output
* Other application of activation current more than1A or impedance less than 20Ω
* Colored in Red as warning sign of high voltage
* Input connected from Control Module or Control Panel
* Conventional type of device without address occupied
* Plug-in structure design for easy installation
Technical data
* Operating Voltage: DC20V-30V* Action current: ≤30mA
* Output: 5A, 250VAC/30VDC
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Installation: Wall-mount
* Dimensions: 82*82*39mm (with base)
* Weight: 127.1g (with base)
* Base: VG-6616
