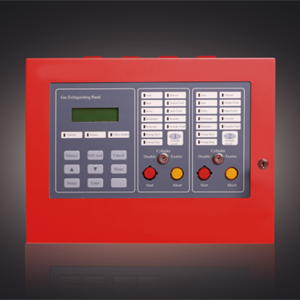

VG-6134 Gas Extinguishing Panel

VG-6134 Gas Extinguishing Panel is a mini control panel with two extinguishing zones only. Integrated with V-GRET FD&A Panel, it can provide an addressable gas extinguishing system. Same as VG-6132, VG-6134 has status indicators, start/abort button and key switch for each extinguishing zone. Together with VG-6811 Mini Intelligent Panel, VG-6134 is considered as an ideal solution which offer a economic solution for small project or protection area, such as residential house, restaurant, hotel, bank office, telecom station, etc.

* Two extinguishing zones
* Integrated with V-GRET FD&A panel for an addressable extinguishing system
* Key-switch for AUTO/Manual Mode
* Outputs available for Valves, actuators and Aerosol Unit control
* Upto 200 event logs
* Messages can be uploaded to intelligent control panel
* Ideal solution for small economic project with VG-6811
* Power Supply: 24V-28VDC
* Extinguishing Zone: 2 zones
* Cylinder Start Voltage: 24-28VDC
* Maximum Start Current: 2A
* Temperature: -10℃～45℃
* Humidity: ≤95％RH（40±2℃）
* Installation: Wall-mount
* Dimension: 320*68*240mm
