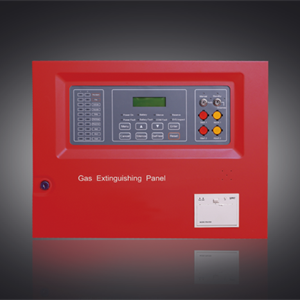

VG-6132 Gas Extinguishing Panel

VG-6132 Gas Extinguishing Panel is a full size conventional control panel with up to four detection zones and two extinguishing zones. It is developed based on "Cross-zone principle" of two detection zones configurable for each extinguishing zone. The panel comes with an LCD screen for displaying the full information of  status of gas releasing and other fire fighting equipments, moreover, all the messages could be uploaded to V-GRET FD&A Panel. Start/Sbort(Abort) buttons are Equipped(equipped) on the panel to manually control of gas release, as well as key-switch available for setting of Auto or Manual mode. The extinguishing release output is capable for valves and actuators, and special setting for Aerosol Unit. VG-6132 is an Ideal solution for data center, computer room, chemical plant, generator room, telecom station, archive storage area, etc.

* Multi-functions with detection zones and extinguishing zones
* Two extinguishing zones and Four detection zones
* Unique 122*32 pixel graphical display
* Key-switch available for AUTO/Manual Mode
* Start/Abort buttons on front
* Wide range of monitored inputs and auxiliary outputs
* Special setting for activating Aerosol Unit
* Up to 1000 event log with message printer
* Messages can be uploaded to intelligent control panel
* Compatible with all conventional field devices

Power Supply: AC 187V～252V/50HZ
Battery: two batteries, 2.3AH/12V
Operating Voltage: 24-28VDC
Extinguishing Zone: 2 zones
Detection Zone: Four detection zones, connect with conventional detectors
Detection Capacity:  15 detectors for each detection zone
Action Voltage: 24-28VDC
Max. Action Current: 2A
Temperature: -10℃～45℃
Humidity: ≤95％RH（40±2℃）
Installation: Wall-mount
Dimension: 430*300*108mm
