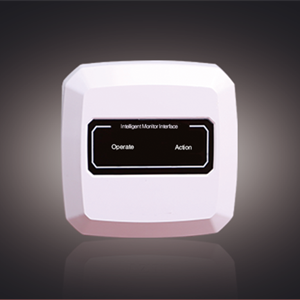

VG-6711 Intelligent Monitor Interface

VG-6711 Intelligent Monitor Interface is designed to monitor the status of connected firefighting equipment, which including water flow indicator, pressure switch, different valves, etc. When the supervised unit is activated or status changed, the interface can transmit the status or feedback to the Intelligent FD&A Panel. Moreover, there is optional function available to check with the open-circuit on input line.

* Electronic Addressing
* Dual-LED for the indications of status
* Optional function to check with input line
* No external power supply required
* Plug-in structure design for easy installation
* Operating Voltage: DC15V-28V
* Standby current: ≤0.5mA
* Action current: ≤0.6mA
* Input: Passive with EOL resistor 4.7k * Transmit Distance: Max. 2000m
* Temperature: -10℃～ +50℃
* Humidity: ≤95%RH （40±2℃）non-condensing
* Installation: Wall-mount
* Dimension: 82*82*39mm (with base)
* Weight: 110.1g (with base)
* Base: VG-6613
